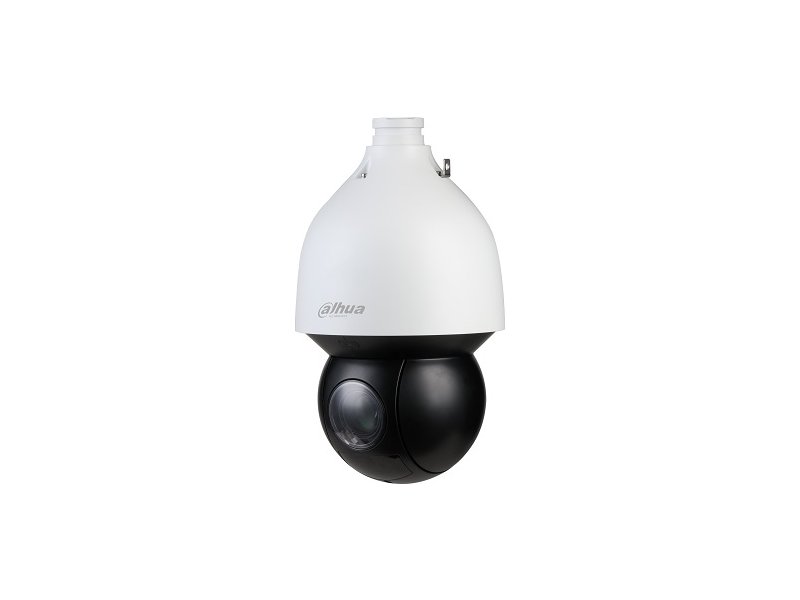

DAHUA TECHNOLOGY CO., LTD IP PTZ kam. 8MP SD5A825GB-HNR

Camera Image Sensor 1/2.8" CMOS Pixel 8 MP Max. Resolution 3840 (H) x 2160 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1s–1/30,000s Scanning System Progressive Min. Illumination 0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 lux (IR light on) Illumination Distance 150 m (492.13 ft) (IR) Illuminator On/Off Control Zoom Prio; manual; auto; off Illuminator Number 4 (IR) Lens Focal Length 5 mm–125 mm Max. Aperture F1.6–F3.6 Field of View H: 55.6°–3.2°; V: 32.2°–1.8°; D: 62.5°–3.7° Optical Zoom 25x Focus Control Auto; semi-auto; manual Close Focus Distance 0.1 m–2 m (0.33 ft–6.6 ft) Iris Control Auto; manual DORI Distance Detect Observe Recognize Identify 3,333.3 m (10,936.02 ft) 1,316.7 m (4,319.88 ft) 666.7 m (2,187.34 ft) 333.3 m (1,093.50 ft) PTZ Pan/Tilt Range Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–300°/s
Tilt: 0.1°/s–200°/s Preset Speed Pan: 400°/s; Tilt: 300°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Pattern;Preset;Scan;Tour PTZ Protocol DH-SD Pelco-P/D (Auto recognition) Intelligence IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking Face Detection Supports face detection, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute extraction is also supported. People Counting Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy. Auto Tracking Yes SMD SMD 4.0 Auto Patrol It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. Video Video Compression H.264H;H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG Streaming Capability 3 streams Resolution 4K (3840 x 2160); 4M (2560 x 1440); 3M (2048 x 1536); 3M (2304 x 1296); 1080p (1920 x 1080); 960p (1920 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240); VGA (640 x 480) Video Frame Rate Main stream: 4K/4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA @ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 128 kbps–16384 kbps
H265: 51 kbps–12288 kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR DWDR HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization EIS Defog Electronic Digital Zoom 16x Image Rotation 180° Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view;
multiple colors available S/N Ratio ?55 dB Audio Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 Network Network Port RJ-45 (10/100 Base-T) Network Protocol FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP Interoperability CGI;SDK;ONVIF (Profile S&G&T) Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (512 GB); FTP/SFTP; NAS Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions Management Software DSS;DMSS;Easy4ip;Smart PSS;IVSS Mobile Client iOS;Android Certification Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1 Port Alarm Input 2 (on-off value input: 0–5 VDC) Alarm Output 1 Audio Input 1 channel (LINE IN, bare wire) Audio Output 1 channel (LINE OUT,bare wire) Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital output; audio Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection Power Power Supply 24 VDC, 2.5 A ± 25%
PoE+ (802.3at) Power Consumption Basic: 12 W Max: 21 W (illuminator+ PTZ + Heater + Fan) Environment Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity ?95% Protection IP67, IK10, TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions D 190.0 mm x 332.0 mm (D 7.48" x 13.07") Net Weight 4.7 kg (10.36 lb) Gross Weight 8.0 kg (17.64 lb)
