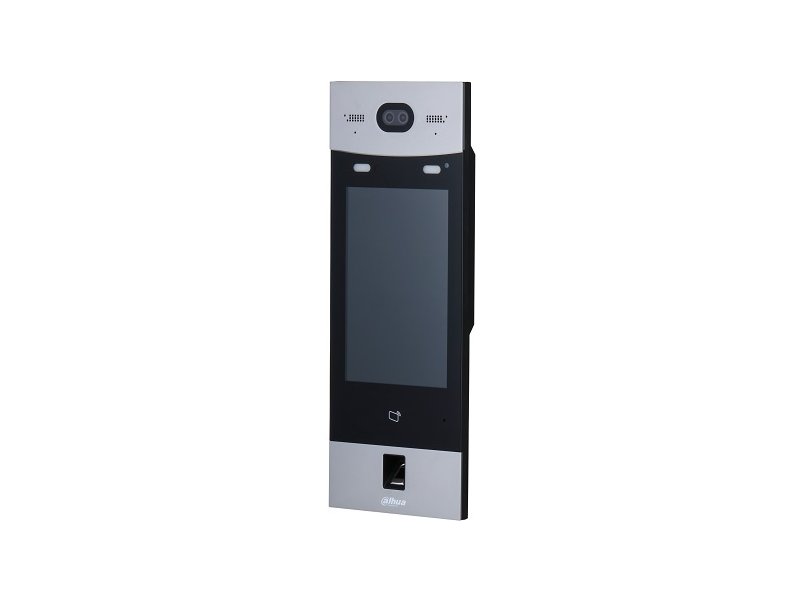

DAHUA TECHNOLOGY CO., LTD Apartment Outdoor Station VTO9541D-S2

System Processor Embedded processor
Clock rate: Dual core A53 1.2GHz Operating System Embedded LINUX Internet Protocol IPv4, DNS, RTSP, RTP, TCP, UDP, SIP Keyboard Type Touch screen QWERTY keyboard Basic Screen Type Capacitive screen Display 10 inch LCD Screen Resolution 800(H)Ч1280(V) Camera 1/2.8" 2MP CMOS low illumination dual camera Angle of View H: 94.16°, V: 49.57°, D: 113.65° Focal Length 4.0 mm WDR 120db Noise Reduction 3D noise reduction Video Encoding H.264 Frame Rate 50Hz:
Main Stream (720P@25fps), sub stream (1080P@25fps) 60Hz:
Main Stream (720P@30fps), sub stream (1080P@30fps) Video Bit Rate H.264: 256Kbps–2048Kbps Light Compensation Auto white light
Auto IR light Day/Night Switch Yes Audio Encoding G.711u Audio Input 1 omnidirectional microphone Audio Output Built-in 1.5 W speaker Audio Mode Full duplex communication Audio Enhancement Echo suppression and cancellation/digital noise reduction Audio Bit Rate 16KHz, 16Bit Status Indicator Card Swiping Indicator Function Communication Methods Full digital Unlock Mode Remote/Password/Fingerprint/Face unlock/Card Card Reading Type IC card Auto Snapshot Yes Information Release Words can be played on the outdoor station Leave Photos and Messages Yes Web Configuration Yes Performance Card Reading Distance 3cm Issue Card Locally Yes Face Recognition Range 0.3m–3m Face Recognition Configuration Anti-fake Threshold Face Verification Accuracy >99% Face Recognition Speed ?0.2s Fingerprint Sensor Type Capacitive Fingerprint Recognition Time ?1.5s Housing Material Metal frame/Tempered glass Capacity Card Capacity 100, 000 Face Image Capacity 100, 000 Fingerprint Capacity 10, 000 Port RS-485 1 Wiegand 1 (input or output) Alarm Input 2 Alarm Output 2 Power Output Port 1, 12V/100mA Exit Button 1 Door Status Detection 1 Lock Control 1, normally open or closed by default Ethernet 1 RJ45, 1 10M/100M/1000M Ethernet port Storage Micro SD card(up to 64GB reserved for software ) Alarm Tamper Alarm Yes General Ingress Protection IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) Password Unlock Mode User password/public password/duress password Color Gray Power Supply Mode DC 12V/2A Power Supply Optional Installation Method Wall mounted Certification CE, FCC, IK, IP Accessory Flush mount plate Product Dimensions 475.8mmЧ174.8mmЧ57.3mm (18.73«Ч6.88»Ч2.56") Protection Grade IK07; IP65 (Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.) Working Temperature -30°C to +60°C (-22°F to +140°F) Working Humidity 10%RH–90%RH (non-condensing) Working Altitude 86kPa–106kPa Power Consumption ?5W (standby), ?18W (working) Net Weight 2.2kg (4.85 lb); Gross Weight 2.67kg (5.89 lb) MODEL VTO9541D-S2
