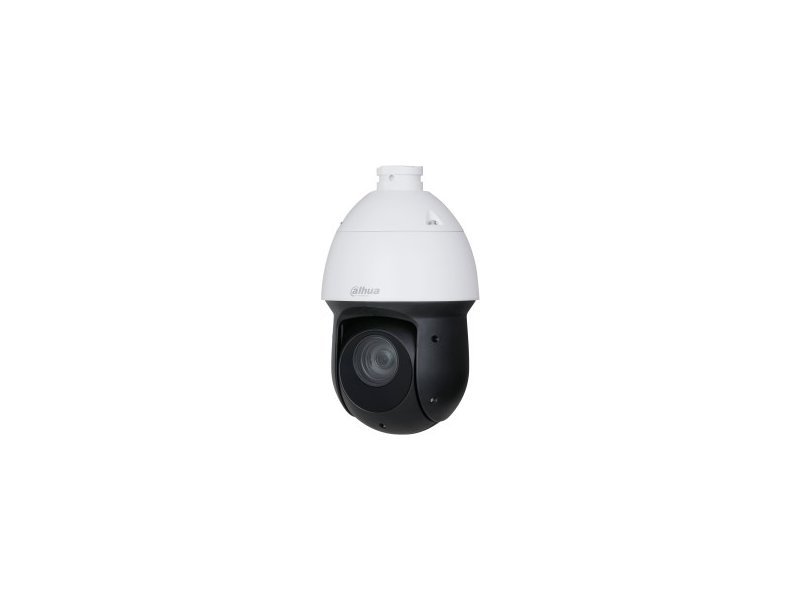

DAHUA 4 Megapixel PTZ cam SD49425GB-HNR

Camera Image Sensor 1/2.8" CMOS Pixel 4 MP Max. Resolution 2560 (H) Ч 1440 (V) ROM 4 GB RAM 1 GB Electronic Shutter Speed 1/1 s–1/30,000 s Scanning System Progressive Min. Illumination Color: 0.005 [email protected]
B/W: 0.0005 [email protected]
0 [email protected] (IR light on) Illumination Distance 100 m (328.08 ft) (IR) Illuminator On/Off Control Zoom Prio; Manual; Smart IR; Off Illuminator Number 4 (IR) Lens Focal Length 5 mm–125 mm Max. Aperture F1.6–F3.6 Field of View H: 53.1°–3.4°; V: 30.4°–1.9°; D: 59.3°–3.9° Optical Zoom 25Ч Focus Control Auto; semi-auto; manual Close Focus Distance 1 m–9 m (3.28 ft–29.53 ft) Iris Control Auto DORI Distance Detect Observe Recognize Identify 2161.4 m (7091.21 ft) 864.6 m (2836.61 ft) 432.3 m (1418.30 ft) 216.1 m (708.99 ft) PTZ Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°–200°/s
Tilt: 0.1°–120°/s Preset Speed Pan: 240°/s
Tilt: 200°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Pattern; Preset; Scan; Tour PTZ Protocol DH-SD
Pelco-P/D(Auto recognition) Intelligence IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification Face Detection Supports face detection, optimization, tracking, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first SMD Yes Quick Pick Yes Video Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ Streaming Capability 3 streams Resolution 4M (2560 Ч 1440); 3M (2048 Ч 1536); 3M (2304 Ч 1296); 1080p (1920 Ч 1080); 720p (1280 Ч 720); D1 (704 Ч 576/704 Ч 480); CIF (352 Ч 288/352 Ч 240) Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate H264: 96–14,848 Kbps
H265: 38–8,960 Kbps Day/Night Auto (ICR)/Color/B/W BLC Yes WDR Yes HLC Yes White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization Electronic (EIS) Defog Electronic Digital Zoom 16Ч Image Rotation 180° Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view S/N Ratio ? 55 dB Audio Audio Compression PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 Network Network Port 1 Ч RJ-45 (10/100 Base-T) Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP Interoperability RTMP; CGI; SDK; ONVIF (Profile S&G&T); P2P Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (512 GB); FTP/SFTP; NAS Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions Management Software DSS; DMSS Mobile Client iOS; Android Certification Certifications CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 UL: UL62368-1 Port Audio Input 1 channel (LINE IN, bare wire) Audio Output 1 channel (LINE OUT,bare wire) Alarm Linkage Capture; recording; send email; preset; tour; pattern; alarm digital input Alarm Event Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Alarm I/O 2/1 Audio I/O 1/1 Power Power Supply 12 VDC/3A±10%
PoE (802.3at) Power Consumption Basic: 9 W
Max.: 20 W (Illuminator+alarm+PTZ) Environment Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F) Operating Humidity ? 95% Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F) Storage Humidity ? 95% Protection IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Product Dimensions 270.4 mm Ч ?160 mm (10.65" Ч ?6.30") Net Weight 2.4 kg (5.29 lb) Gross Weight 3.9 kg (8.60 lb)
