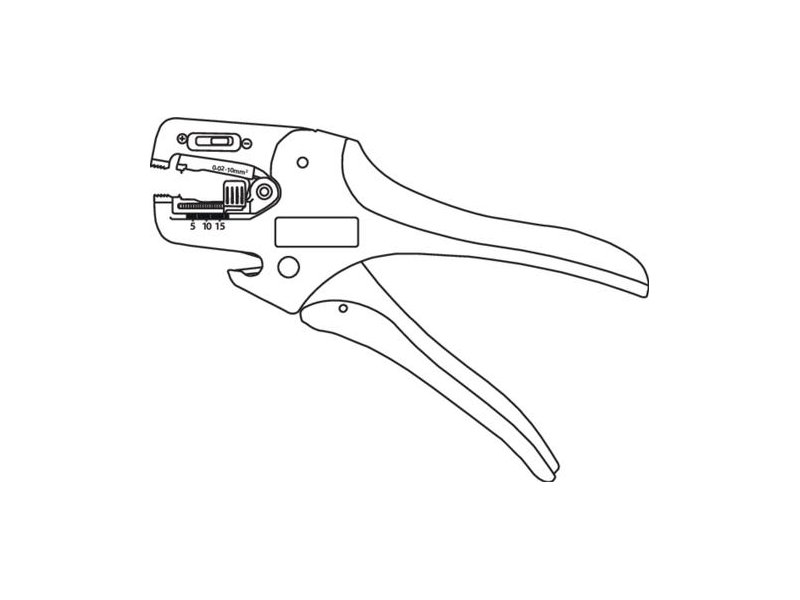

Gedore 8146

Module insert no. 8146-1 with flat blade included in delivery, 0.02-10 mm2 / AWG 34-8 (for PVC insulation)<br>Dimensions: 191 x 123 x 20 mm<br>The use of easily exchangeable module inserts allows accurate stripping of a wide range of insulation materials, including PVC and PTFE, with just one tool<br>Optional available:<br>No. 8146-2 with round blade, 4-16 mm2 / AWG 10-5<br>No. 8146-3 with V blade, PTFE 0.1-4 mm2 / AWG 28-12 (for all types of insulation)<br>No. 8146-2 with circular blade: 4-16 mm²/AWG 10-5<br>No. 8146-3 with V-blade: PTFE 0.1- 4 mm²/AWG 28-12 (for all insulations)<br>Cutting values:<br>Flexible Leiter bis zu 10 mm²/AWG 8<br>Rigid wires up to 1.5 mm2 / AWG 16<br>Gedore 8146
