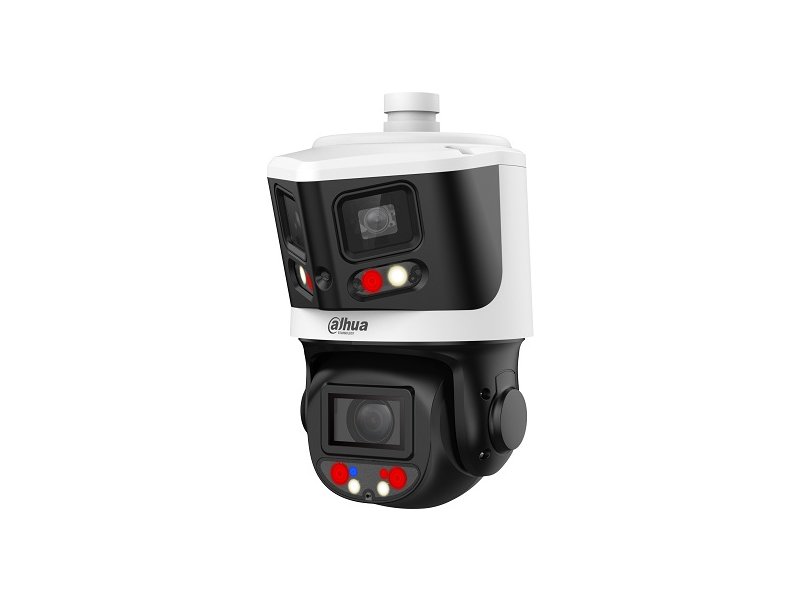

DAHUA TECHNOLOGY CO., LTD IP PTZ kam. 8MP+4MP SDT3E410-8P-MB-A-PV1

Camera Image Sensor Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS Pixel Overview channel: 8 MP; Detail channel: 4 MP Max. Resolution Overview channel: 5376 (H) x 1520 (V); Detail channel: 2560 (H) x 1440 (V) ROM Overview channel: 4 GB; Detail channel: 4 GB RAM Overview channel: 2 GB; Detail channel: 1GB Electronic Shutter Speed Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s Scanning System Progressive Min. Illumination Overview channel:
0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
1 s–1/30,000 s
0.005 [email protected] (Color, 30 IRE);
0.0005 [email protected] (B/W, 30 IRE);
0 lux (illuminator on) Illumination Distance Overview channel:
30 m (98.43 ft) (IR);
30 m (98.43 ft) (white light)
Detail channel:
70 m (229.66 ft);
30 m (98.43 ft) (white light) Illuminator On/Off Control Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off Illuminator Number Overview channel: 2 (IR light); 2 (white light); Detail channel: 2 (Dual light fusion); 2 (IR light) Lens Focal Length Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm Max. Aperture Overview channel: F1.6; Detail channel: F1.6-F3.6 Field of View Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° Optical Zoom Overview channel: NA; Detail channel: 10x Focus Control Auto; manual; semi-auto Close Focus Distance Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) Iris Control Overview channel: NA; Detail channel: NA DORI Distance Detect Observe Recognize Identify 500 m (1640.42 ft) 197.5 m (647.97 ft) 100 m (328.08 ft) 50 m (164.04 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Pan: 0° to 345°;
Tilt: -10° to +90° Manual Control Speed Overview channel: NA; Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s Preset Speed H: 80°/s; V: 50°/s Preset 300 Power-off Memory Yes Idle Motion Preset Intelligence IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people) Face Detection Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. SMD SMD 4.0 SMD Yes Active Deterrence Light Warning Red and blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low Sound Warning Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10. Video Video Compression H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) Streaming Capability 3 streams Resolution Overview channel: 5376 x 1520; 26886 x 752; 1080p (1920 x 1080); 720p (1280 x 720); 1344 x 368; D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240);
Detail channel: 2560 x 1440; 3M (2304 x 1296); 1080p (1920 x 1080); 1280 x 960 (1.3M); 720p (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240) Video Frame Rate Overview channel: Main stream: 5376 x 1520 @(1–25/30 fps)
Sub stream 1: 1344 x 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 x 752/1080p/1.3M/720p @(1–25/30 fps);
Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) Bit Rate Control CBR/VBR Video Bit Rate Overview channel: H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel: H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps Day/Night Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic BLC Yes WDR Overview channel: DWDR
Detail channel: 120 dB HLC Yes White Balance Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio Noise Reduction Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Image Stabilization Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS) Defog Overview channel: Electronic
Detail channel: Electronic Digital Zoom Overview channel: NA
Detail channel: 16x Image Rotation Overview channel: NA
Detail channel: 180° S/N Ratio Overview channel: ?55dB
Detail channel: ?55dB Audio Audio Compression Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA Network Network Port RJ-45 (100 Base-T) Network Protocol FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP Interoperability ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P Streaming Method Unicast/Multicast User/Host 20 (total bandwidth: 64 M) Storage Micro SD card (512 GB); FTP/SFTP; NAS Browser web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions Management Software DMSS; DSS Pro Mobile Client iOS; Android Certification Certifications CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 Port Audio Input 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) Audio Output 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) Alarm Input 1 (on-off value input: 0–5 VDC) Alarm Output 1 channel Alarm Linkage Capture; recording; send email; preset; alarm digital output; audio; warning light Alarm Event Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection Power Power Supply 12 VDC, 3 A ± 10%
PoE+(802.3at) Power Consumption Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ) Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity ?95% Protection TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection Structure Product Dimensions 140.3 mm x 181.7 mm x 238.8 mm (5.52" x 7.15" x 9.40") (L x W x H) Net Weight 2.17 kg (4.78 lb) Gross Weight 3.1 kg (6.83 lb) The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
