HDMI Extender 120m, 4K

HDMI signal extender up to 120m, 4K, KVM, HDMI cable to 10m, IR.The Extender uses a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high definition signal up to 120 meters.
Features: HDMI resolution 4K (3840x2160).HDMI version 1.4 / HDCP1.4.Supports a maximum frequency of 3.4Gbps, bandwidth 340MHz.Supports standard AWG26 HDMI cable, input / output up to 10 meters.Supports 120m long distance transmission.Low power consumption, low temperature, high safety.The transmitter / receiver supports a 3.5mm audio port.IR control, USB mouse and keyboard port are supported.
Specifications: Max (CAT5e / CAT6 cable) length between transmitter and receiver: 120m.HDMI version: HDMI 1.4, HDCP1.4.HDMI resolution: 4K / 1080p / 720p / 576p / 576i / 480p / 480i.HDMI AWG26 cable length to transmitter (TX) / receiver (RX): up to 10m.Max. transmitter (TX) operating current: 350mA.Max. receiver (RX) operating current: 200mA.Max. bandwidth: 340MHz.Max. baud rate: 3x3.4Gbps.Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A.Operating temperature: -15°C ~ + 55°C.Operating humidity: 5-90% RH.Size: 107x105x27.3 mm.Weight: TX 499g; RX 494g.

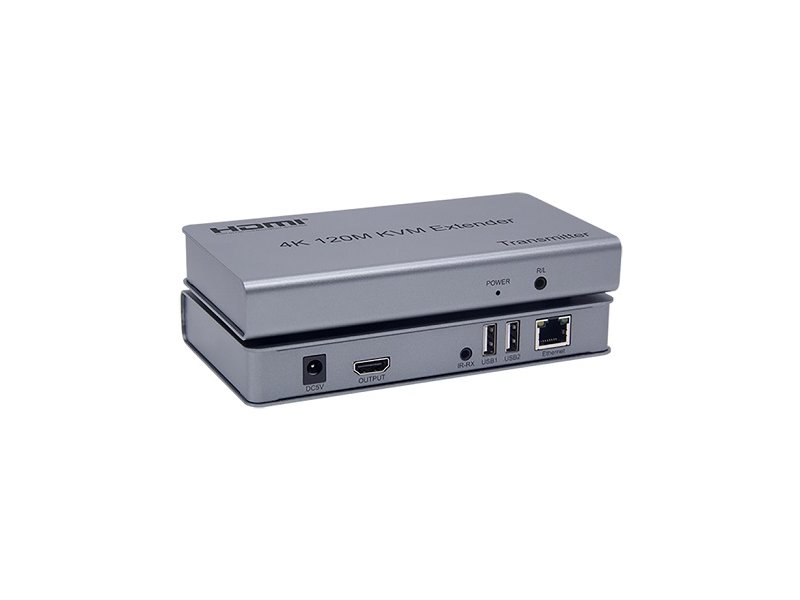

Transmitter's ports:DC / 5V — power input port.OUTPUT — HDMI output.INPUT — HDMI input.IR-TX — IR transmitter port.USB-PC — USB port for connection to PC.ETHERNET — CAT5e / CAT6 cable connection port.POWER — power indicator light.R / L — audio output.Receiver’s ports:DC / 5V — power input port.OUTPUT — HDMI output.IR-TX — IR receiver port.USB-1-2 — USB port for mouse / keyboard.ETHERNET — CAT5e / CAT6 cable connection port.POWER — power indicator light.R / L — audio output.
Packing list: Transmitter (TX).Receiver (RX).Power adapter x2 (5V / 1A DC).IR controller x2.User's manual.
Warranty: 24 months.
