EV Charging Stasion Socket Duosida, Type 2 (Female), 32A, 3-fazė
66,26 €
63,70 € -4%
By order | In partner stock:
3 pcs
Delivery in: 3-5 business days
Delivery options & prices
Description |

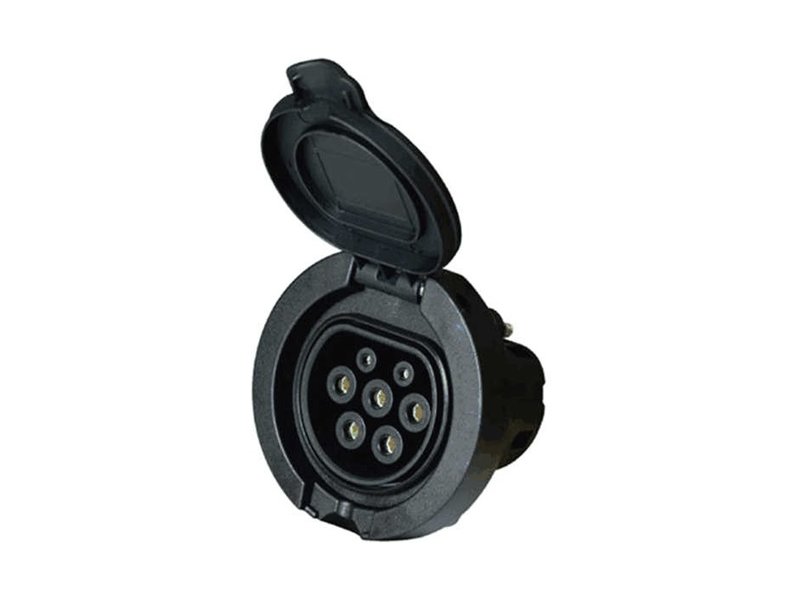

Electric vehicle charging station socket (charger side), Type 2 (Female), 32A, 3-phase, without cable.
Features:Type 2 electric vehicle charging socket (62196-2).The socket has a protective cover, is compact and easy to install with 4 fixed points, screw method.Antiflaming, pressure-resistant, abrasion resistant and impact resistant.Charging capacity up to 22 kW. Operating temperature -30° to +50°C. Current 32A/415V.Contacts: copper alloy, silver plating. Specifications: Connector type: IEC 62196, Type2 (European), Mennekes, 7 contacts.Rated current: 32A.Operating voltage: 415V AC.Cable specification: 3x6mm2+2x0.75mm2 (single phase); 5x6mm2+ 2x0.75mm2 (three phase).Operating temperature: -30°C to +50°C.Material: thermoplastic, flame retardant grade UL94 V-0.Certificates: CE, TUV.Colour: black. Warranty: 24 months. |
