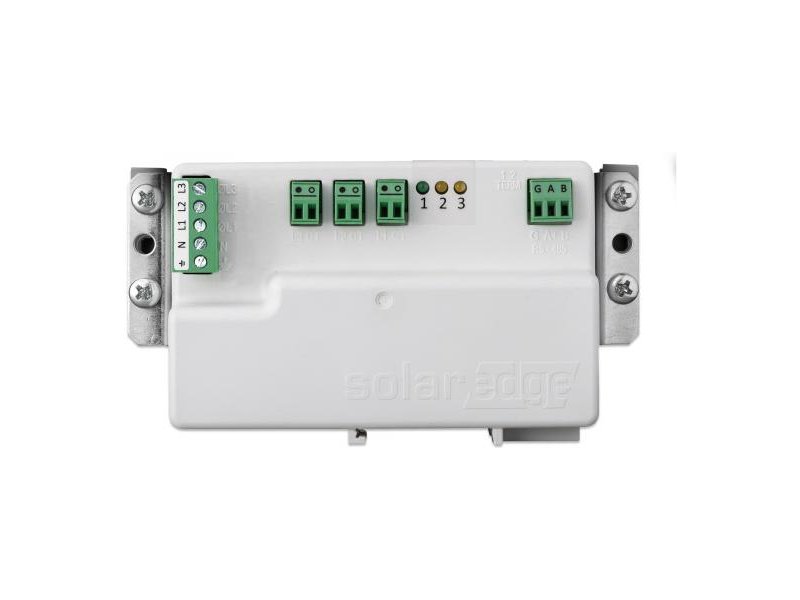

SolarEdge ENERGY METER 1PH/3PH 230/400V
Product images are
for illustrative purposes only
289,90 €
By order | In partner stock:
3 pcs
Delivery in: 5-10 business days
Delivery options & prices
Brand:
SolarEdge
01.ee Item Code:1662558
Product code: SE-MTR-3Y-400V-A
EAN:
- 5904905310224
Warranty: 12 months
| Weight | 225 g |
| Frequency | 45 / 65 Hz |
| Mounting | DIN TH-35 mounting rail |
| Response time | 200 ms |
| Width | 138.6 mm |
| Depth | 35 mm |
| Height | 75 mm |
| Safety | IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 Nr. 61010-1-04 |
| Power consumption (typical) | 3 W |
| Operating temperature (T-T) | -40 - 85 °C |
| Measuring Functions | Power current |
| Product colour | White |
| IEC accuracy | IEC 62053-21 Class 1, IEC 62053-23 Class 2 |
| RS485 phase end | 120 Ω |
| Current transformer inputs | 333 mV |
| Operating voltage range - phase to neutral / phase to phase | Nominal: 230 / 400 Vac, 184 - 264.5 / 320 - 460 Vac |
| Supported network | Single-phase PE / N / L |
| Default device | Modbus |
| Supported communication systems | RS485 half-duplex, 3 wires (A, B, GND) |
